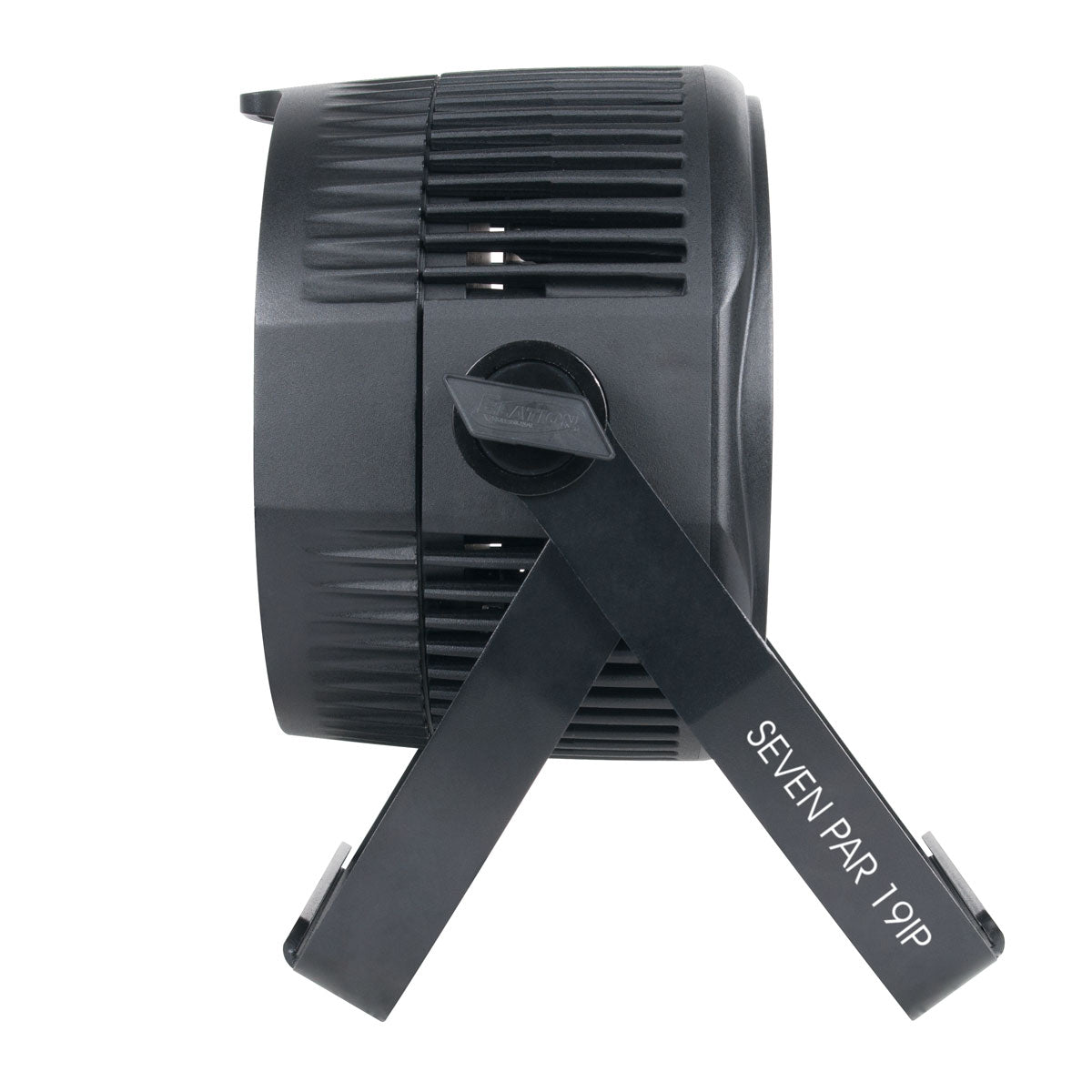

SEVEN PAR 19IP
SEVEN PAR 19IP is a professional-grade lighting solution. The SEVEN PAR 19IP™ is an IP65 outdoor rated seven color par wash luminaire with (19) 25W 7-in-1 RGBAW + Lime + UV LEDs (Red, Green, Blue, White, Amber, Lime, and a 395nm UV) producing up to 9,300 total output lumens and 90CRI.
Related Products
SEVEN PAR 19IP
IP65 Outdoor Rated Seven Color Par Wash Luminaire
(19) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs
9,300 Total Output Lumens | 90CRI
Individual Hue, Saturation, and Intensity Control
RGB + Seven Color 3 Channel DMX Mode
Smooth Color Mixing
12 Internal Programs with Speed and Fade Control
64 Unique 7-Color Macros
Selectable Dimming Curve Modes
Adjustable LED Refresh Rate + Gamma Brightness
Flicker Free Operation for TV and FILM
DMX and RDM Protocol Support
IP65 Rated 5pin XLR and Power In/Out
Dual Adjustable Yoke / Floor Stand
Multiple Unit Power Linking
Rugged Powder Coated Die-Cast Aluminum Exterior
Gel Frame and Gel Frame Holder Included

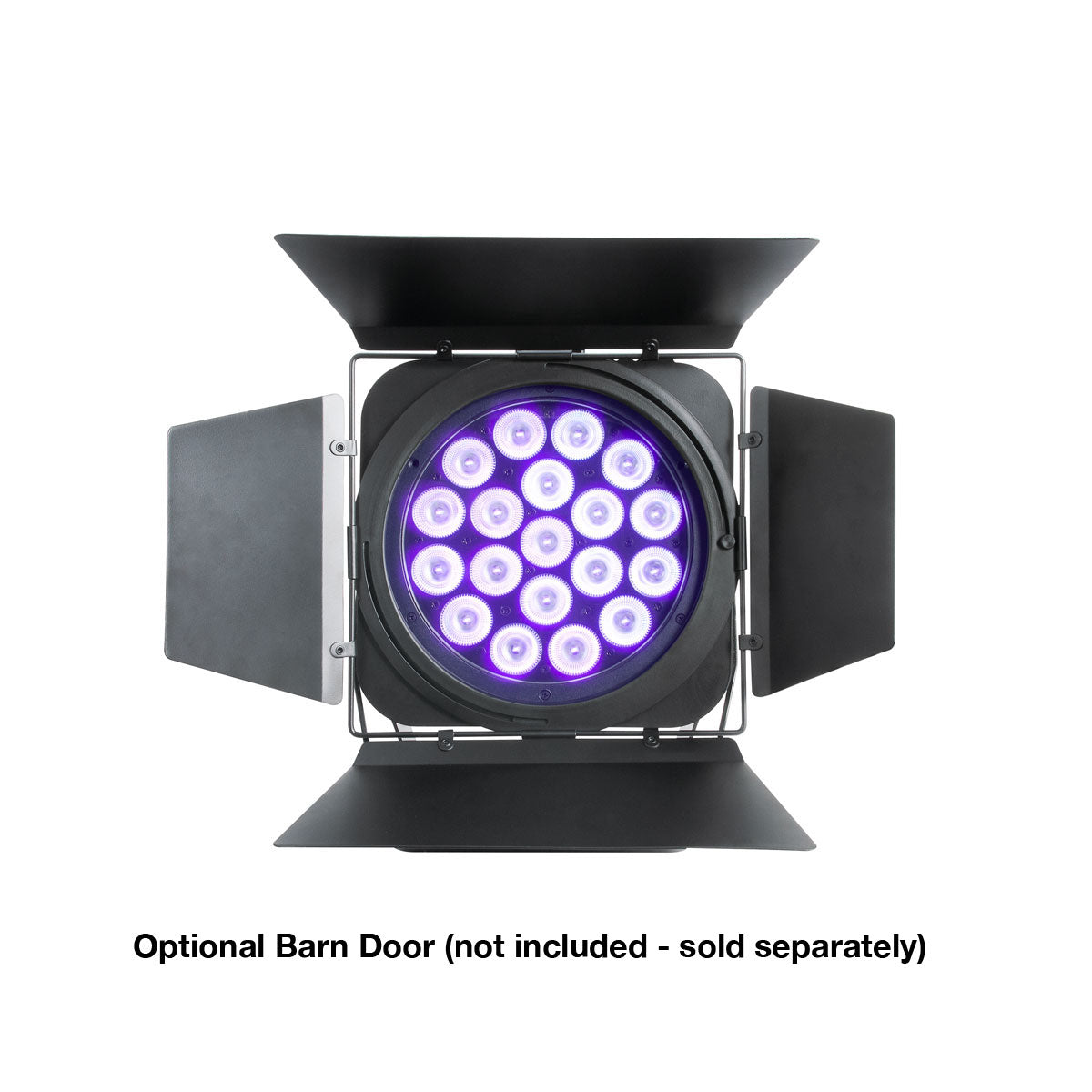

Optional 4-Leaf Barn Door Available
Specifications
(19) 25W 7-IN-1 RGBAW + Lime + UV (395nm) LEDs
50,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
9,300 Total Lumen Output | 90CRI
10,551 LUX 981 FC @6.6’ (2m) (Full ON)
EFFECTS
Individual Hue, Saturation, and Intensity Control
RGB + Seven Color 3 Channel DMX Mode
12 Internal Program Macros with Speed and Fade Control
64 Unique 7-Color Macros
Selectable Dimming Curve Effects
COLOR
RGBAW + Lime + UV (395nm)
CONTROL / CONNECTIONS
(7) DMX Channel Modes (15 total channels)
DMX and Manual Control
4 Button Control Panel
180° Reversible OLED Menu Display
Adjustable Refresh Rate (900-25,000 (Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
RDM (Remote Device Management) Protocol Support
IP Rated 5pin DMX and Power In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 14.0” (357mm)
Width: 14.6” (371mm)
Vertical Height: 11.2” (284mm)
Weight: 25.0 lbs. (11.3kg)
GEL FRAME
Length: 12" (305mm)
Vertical Height: 12" (305mm)
Inner Diameter: 9" (229mm)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
500W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP65
FIRMWARE UPDATES
Current Version: V1.16
Click HEREfor software updates
Specifications and documentation subject to change without notice.
