RDM 645
The Netron RDM 645 is a rugged and compact DMX/RDM Splitter. Designed for live production and installations, it features six opto-isolated RJ45 DMX outputs and flexible mounting options to cover any situation.
RDM 645
Sale price$0.00
Related Products
RDM 645
The Netron RDM 645 is a rugged and compact DMX/RDM Splitter. Designed for live production and installations, it features six opto-isolated RJ45 DMX outputs and flexible mounting options to cover any situation.
- (6) Locking RJ45 Ethernet DMX outputs
- DMX and RDM compliant
- Optically isolated ports
- Power / DMX Through connectors
- Powder-coated aluminum ½ rack housing
Specifications
Mounting
- Standalone

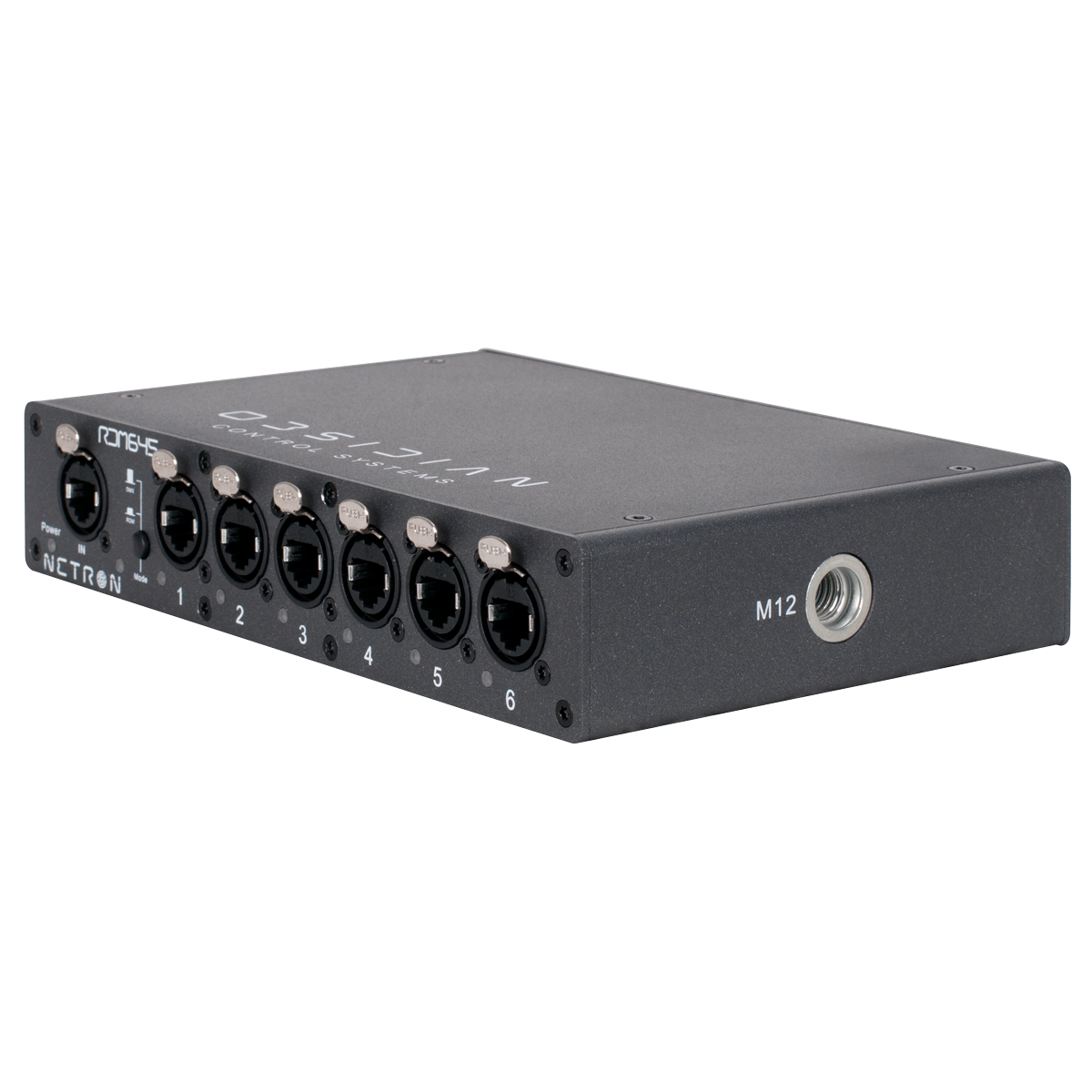

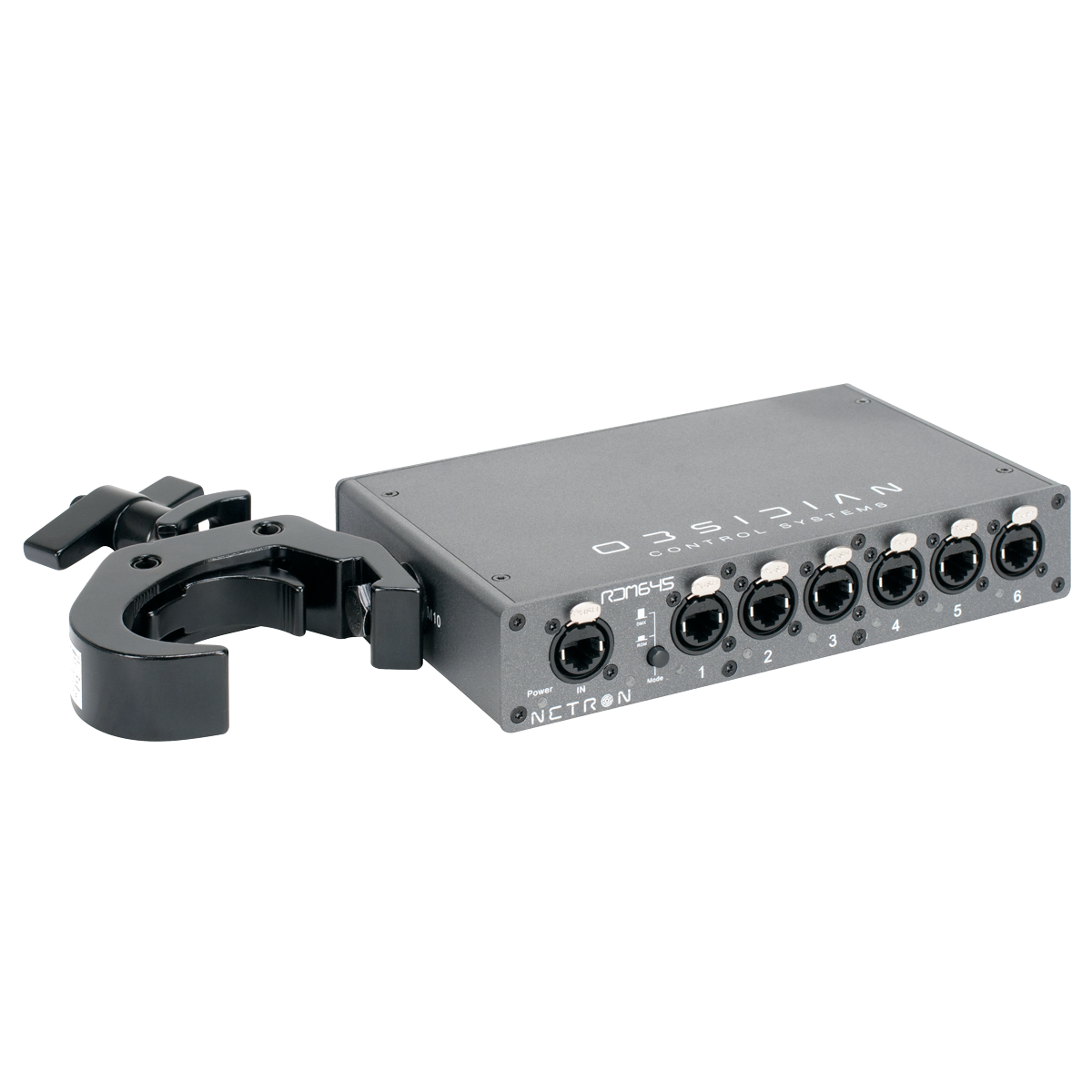

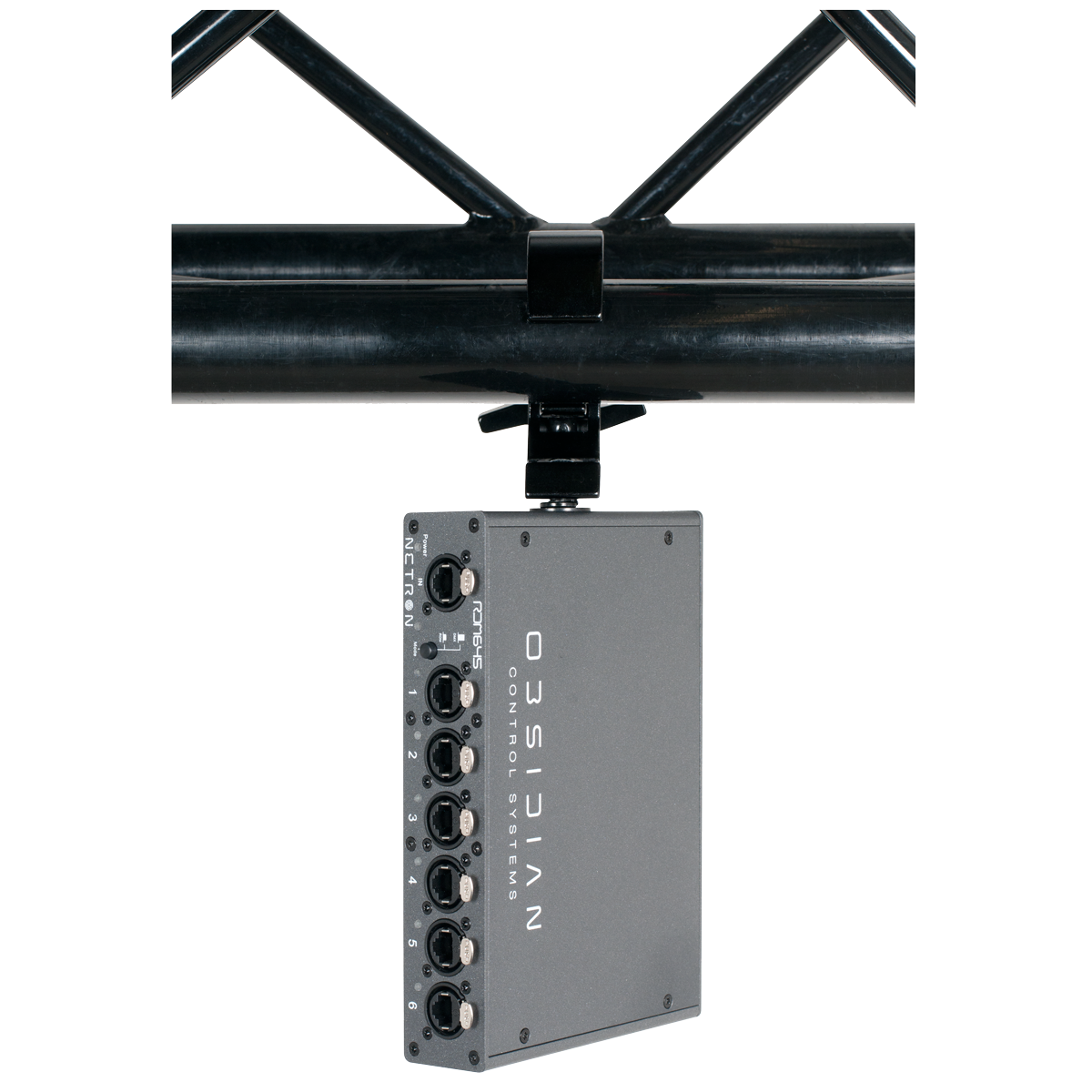

- Truss-mount (M10 or M12 mounting hole)

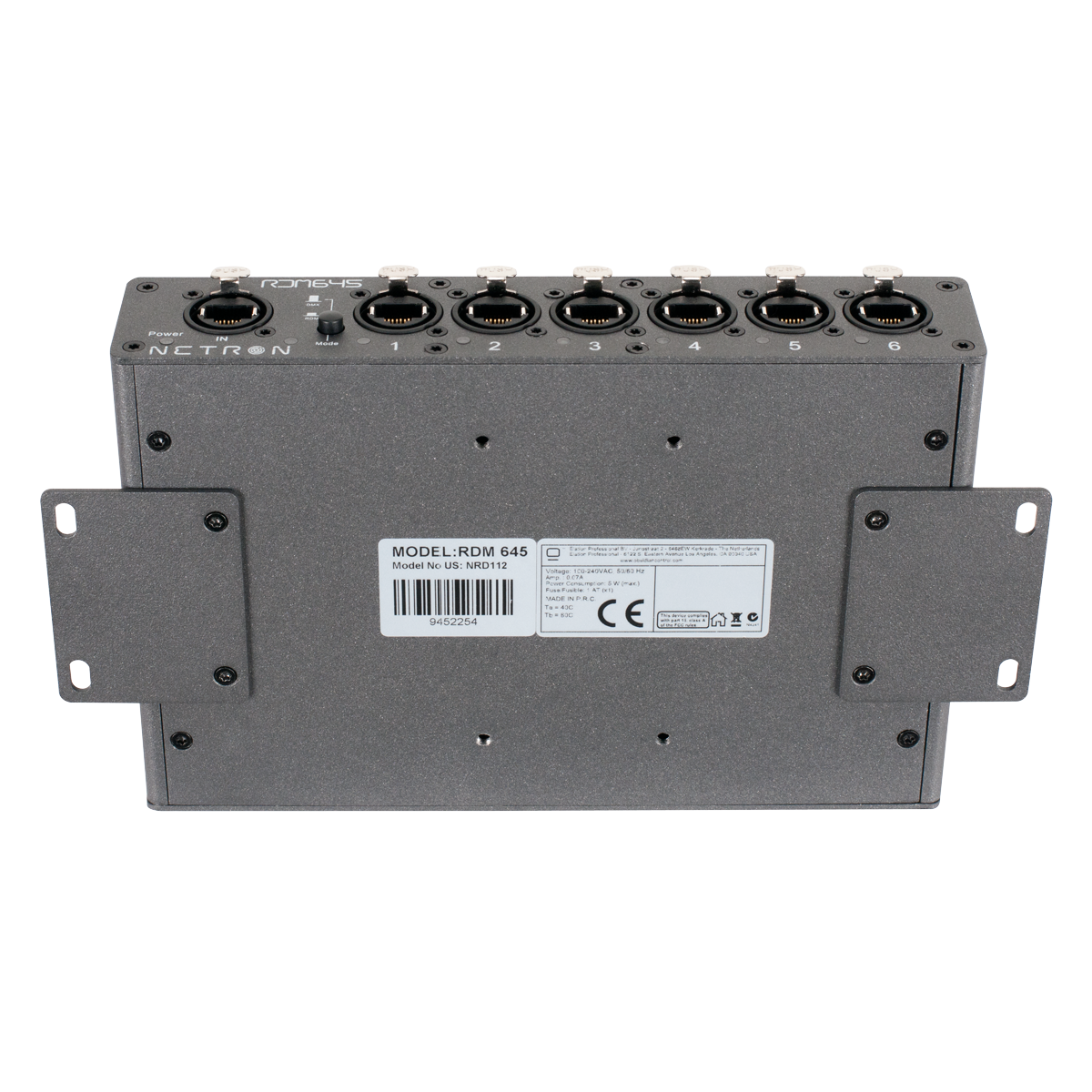

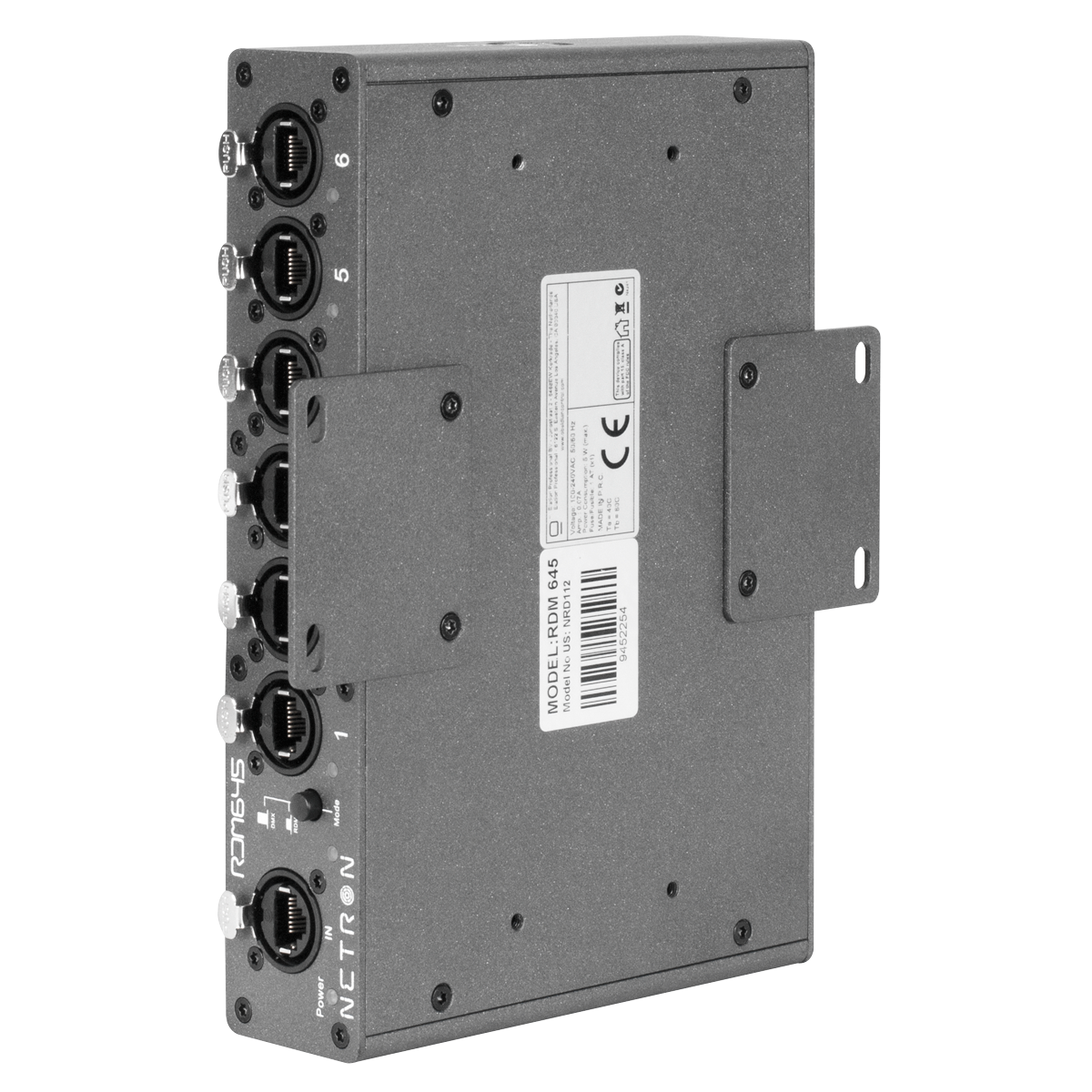

- Wall-mount horizontal or vertical (included)

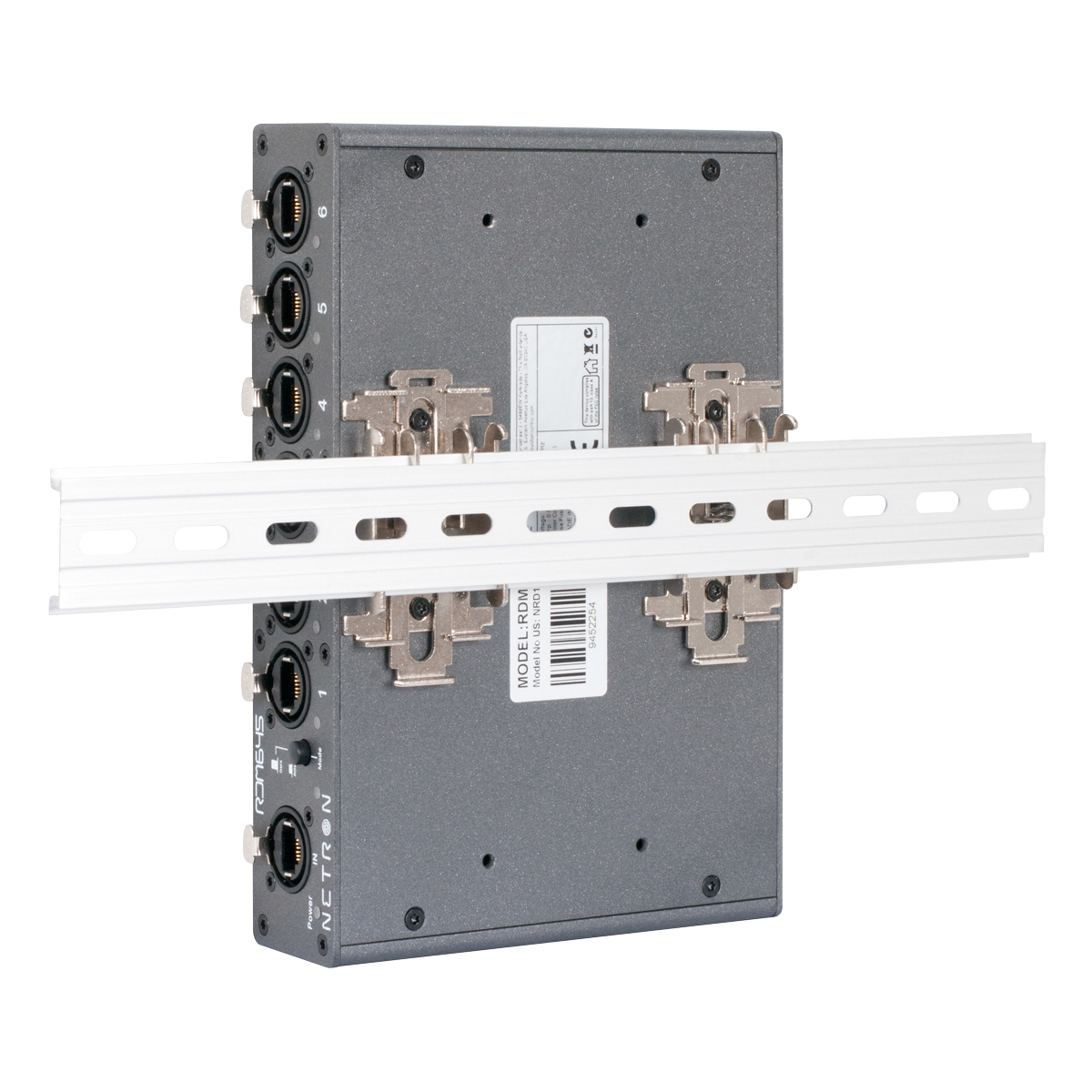

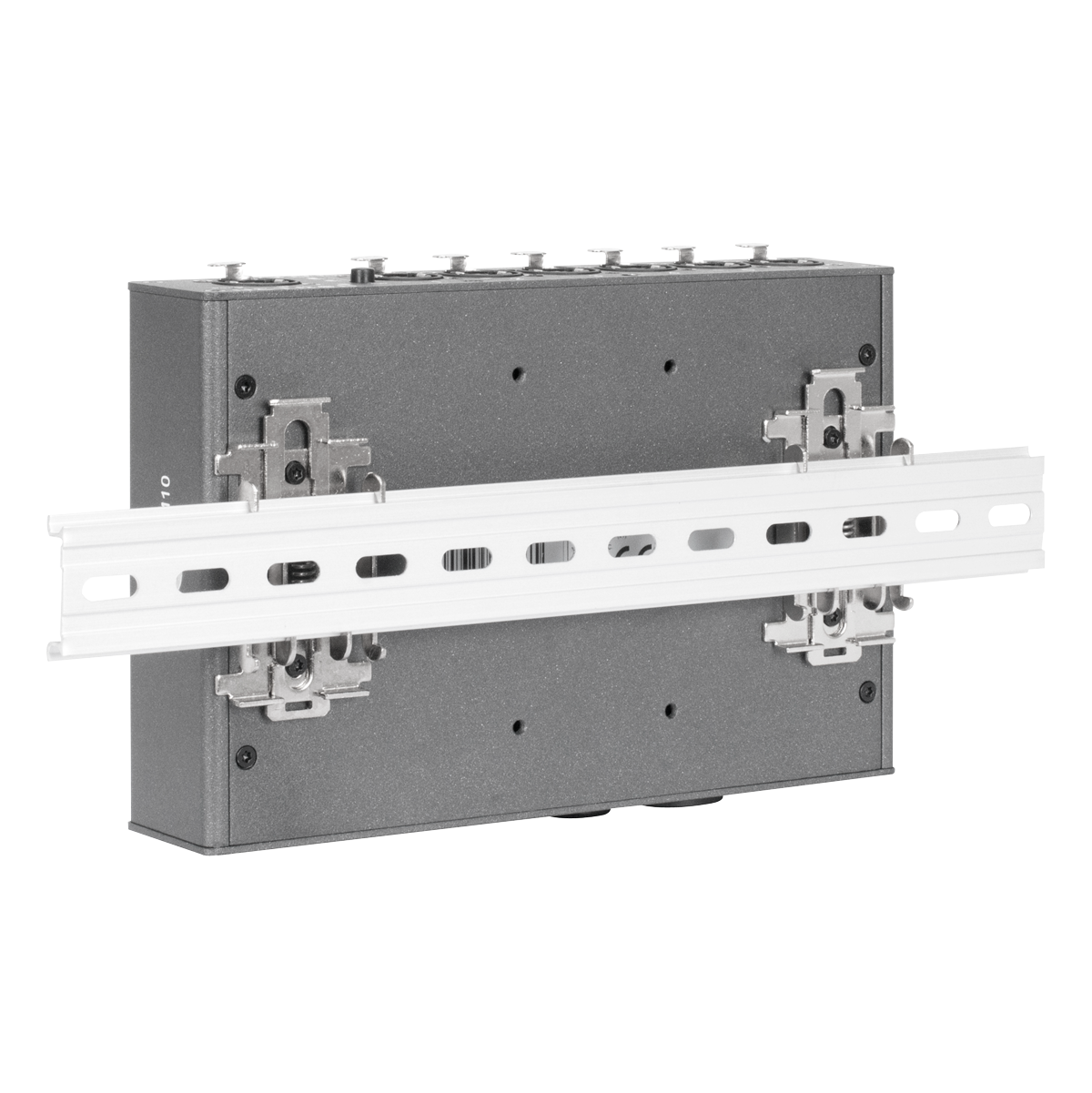

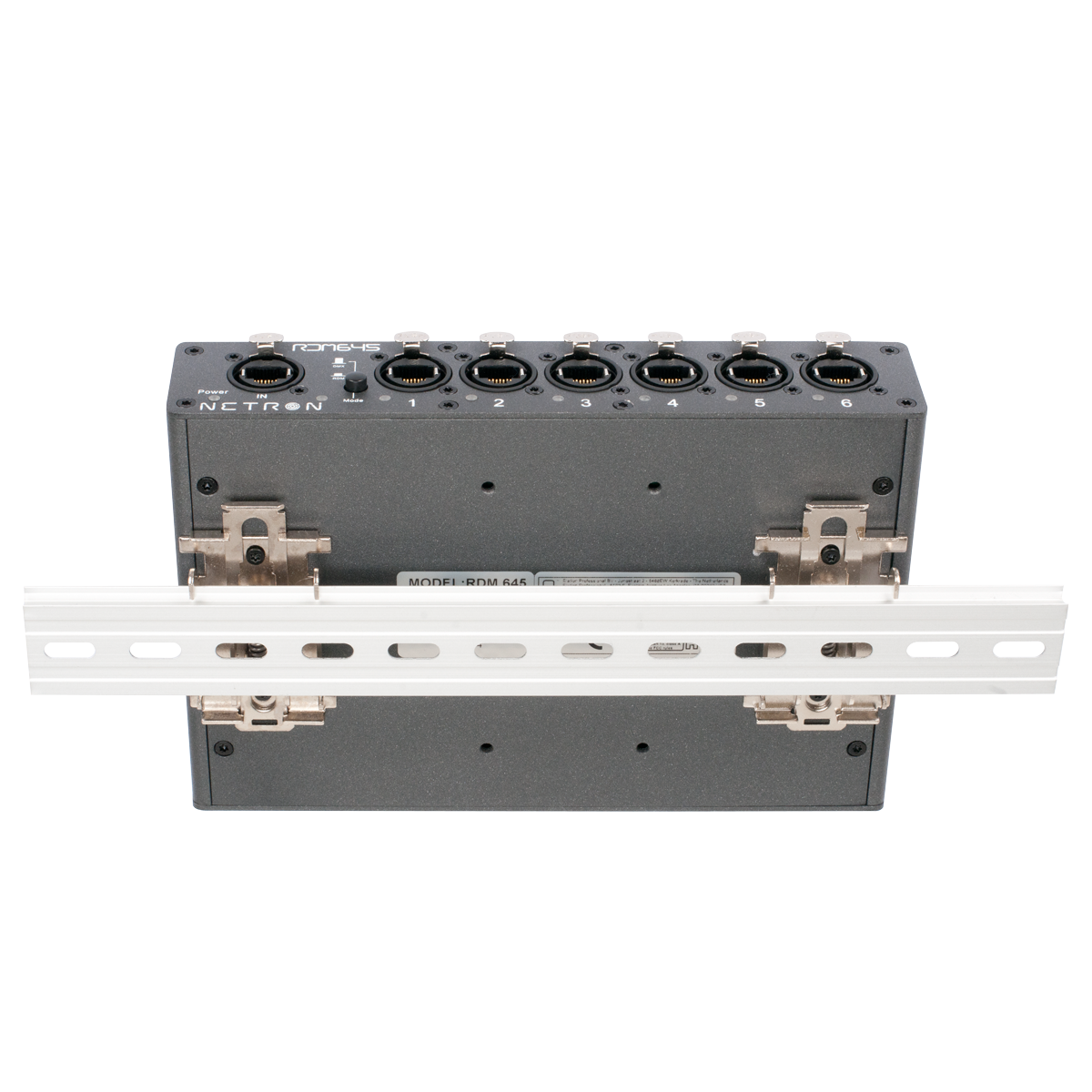

- DIN Rail horizontal or vertical (included)

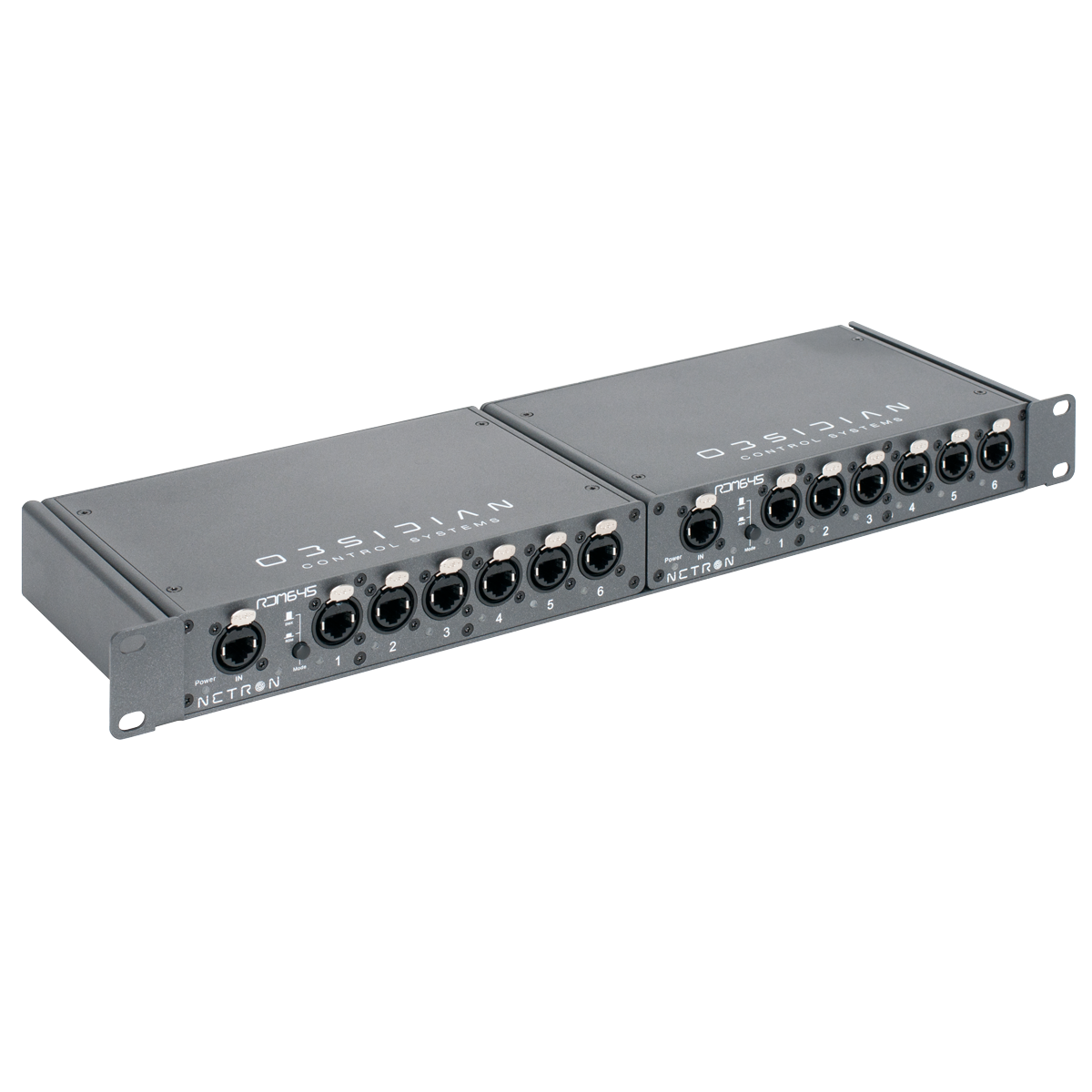

- Rack-mount option (requires NET Shelf)
Connections
Front
- Locking RJ45 Ethernet DMX Input
- (6) Locking RJ45 Ethernet Opto-Isolated DMX Outputs
- RDM Enable

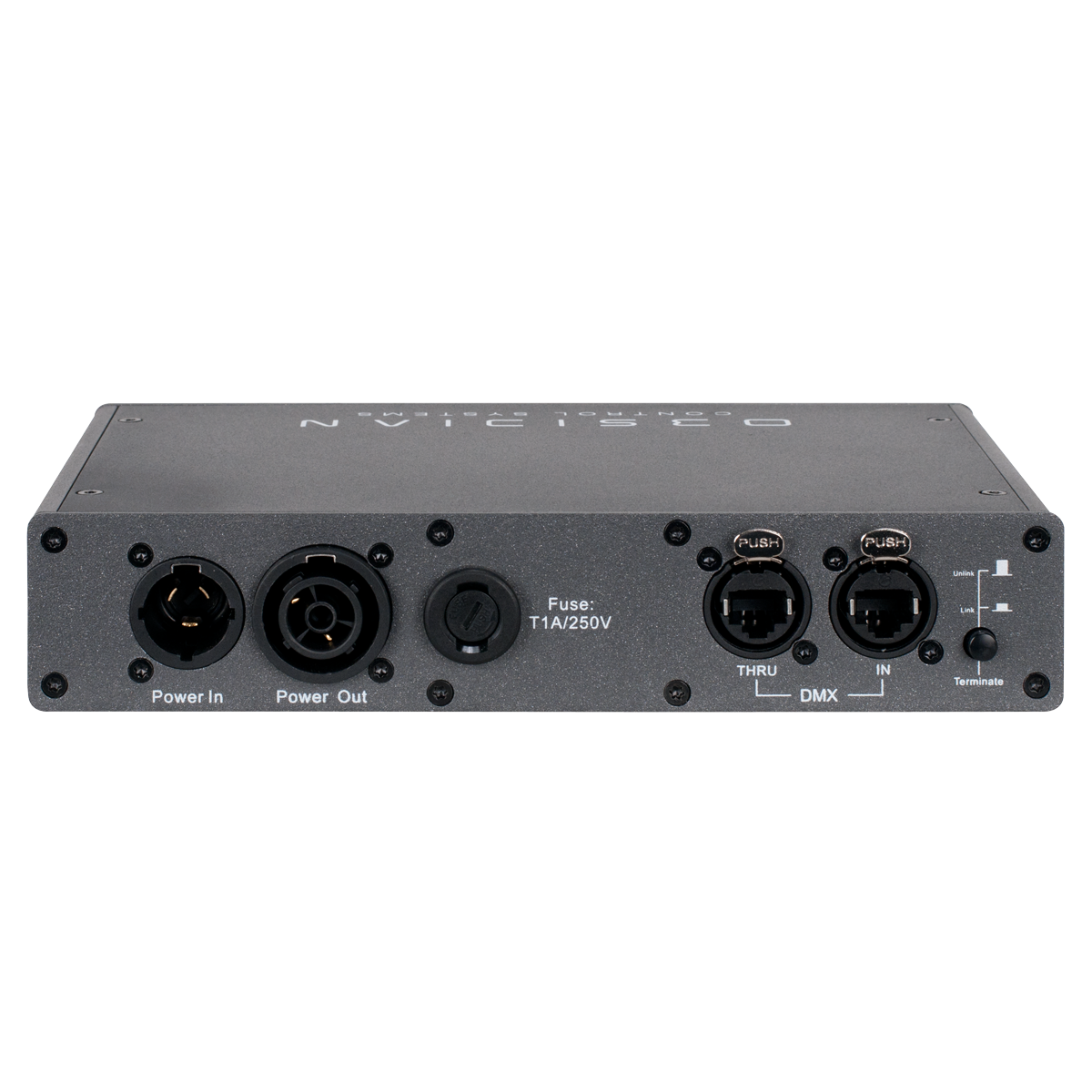

Back
- Locking RJ45 Ethernet DMX Input (parallel with front)
- Locking RJ45 Ethernet DMX Through
- Terminate
- Locking Power In/Thru
Specifications
Physical
- Length: 215 mm (8.5 in.)
- Width: 139 mm (5.5 in.)
- Height: 42 mm (1.65 in.)
- Weight: 1 kg (2.2 lbs)
Electrical
- 100-240 V nominal, 50/60 Hz, 10W
- cETLus / CE / IP20
Ordering
Included Items
- 1.5m Locking power cable (EU or US version)
- (2) Wallmount plates
- (2) DIN-Rail clamps
SKU
- US #: NRD112
- EU #: 1330000062
